Step 1

What's Included?

Make sure you have everything you need to set up your terminal. Ensure that your Ethernet service is ready to support your terminal.

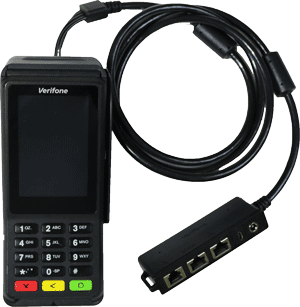

V400c terminal with the multi-port box

Power cable

Paper Roll

Ethernet Cable

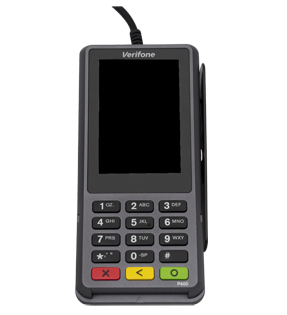

Optional P400 external PIN pad

Visit our Support page

Step 2

Connect cables to your terminal

Connect your V400c to the Internet and to a power source.

1. Ethernet cable to multi-port box

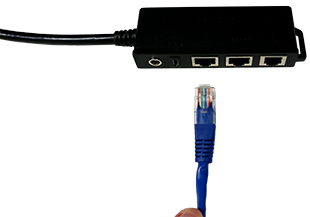

Plug one end of the Ethernet cable into the Ethernet port on the multi-port box labelled with the network symbol ().

2. Ethernet cable to Internet

Plug the other end of the Ethernet cable into the router/switch/hub/internal wiring, or whatever is applicable to your high-speed Internet service.

Connecting Moneris terminal ethernet to router

3. Power cable to multi-port box

Plug the power cable’s barrel connector into the power port on the multi-port box labelled with the power symbol ().

4. Power cable to power source

Plug the other end of the power cable into a power source. The terminal will power on.

TIP: Plug the power cable into a power source last to avoid surges. Use a power bar with surge protection. To avoid damage, use the exact power adaptor and cables provided by Moneris for your terminal. If you have a power cable from another terminal, do not use it as it may damage your new terminal.

Visit our Support page

Step 3

Connect Optional External PIN pad

1. Expose the connection well

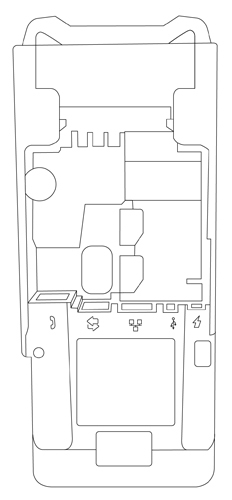

Turn the terminal over so that the back panel is facing you. Remove the back panel cover to expose the connection well.

2. Connect the power cable

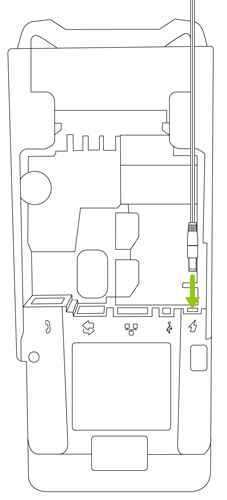

Plug the barrel connector of the power cable into the port labelled with the power symbol ().

3. Connect the PIN pad cable

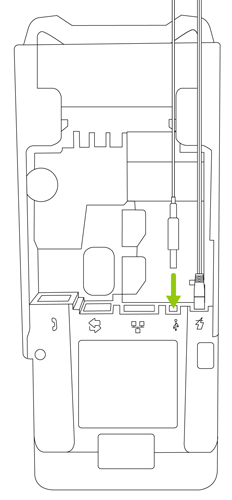

Insert the PIN pad cable into the USB port labelled with the USB symbol ().

4. Connect the Ethernet cable

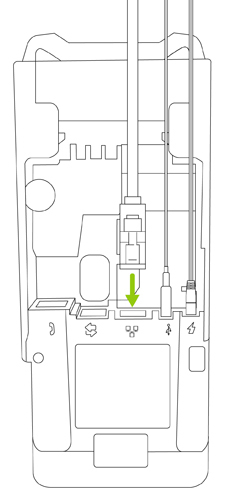

Insert the Ethernet cable into the Ethernet port labelled with the Ethernet symbol ().

5. Complete the connections

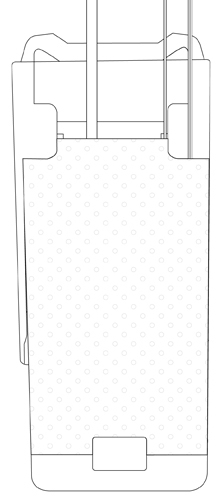

Plug the other end of the Ethernet cable into the router / switch / hub / internal wiring — whatever is applicable to the high-speed Internet service at your location. On the terminal, reattach the back panel flap and close it.

Note: Ensure the cables are not tangled and emerge smoothly from the back of the terminal so that you can reattach the flap and close it securely.

6. Power cable to power source

Plug the other end of the power cable into a power source. The terminal and PIN pad will power on.

Visit our Support page

Step 4

Load Paper Roll into the terminal

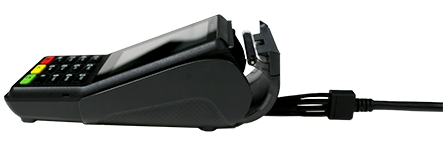

1. Lift up printer latch and pull back

This will open the lid and expose the paper well.

2. Insert paper roll into paper well

The loose end should unroll toward the back of the terminal. If it does not, printouts may be blank. Extend the paper at least one inch (2.5 cm) over the top of the lid.

3. Close lid and press down

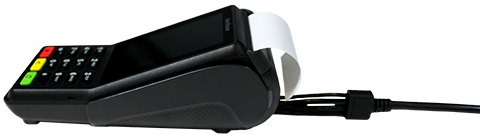

This will snap the lid in place so the extended paper is secure. The paper should unroll over top of lid, not over the screen.
