Make sure you have everything you need to set up your terminal. Ensure that your Wi-Fi network is ready to support your terminal.

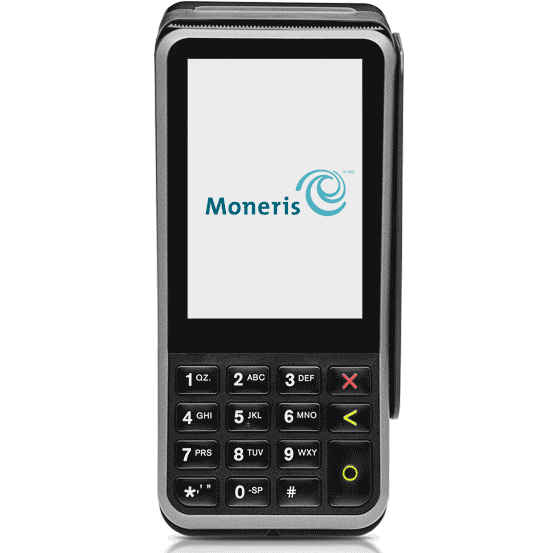

V400m wireless terminal

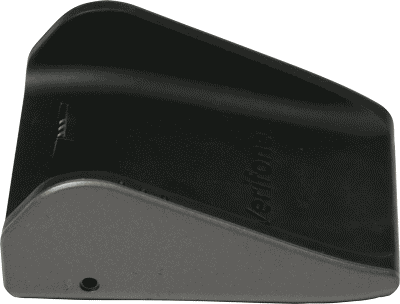

Optional charge-only base

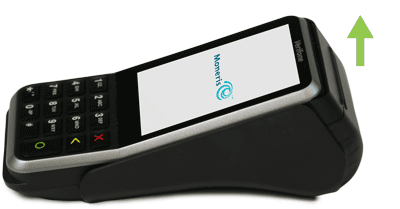

1. Lift up printer latch and pull back
This will open the lid and expose the paper well.

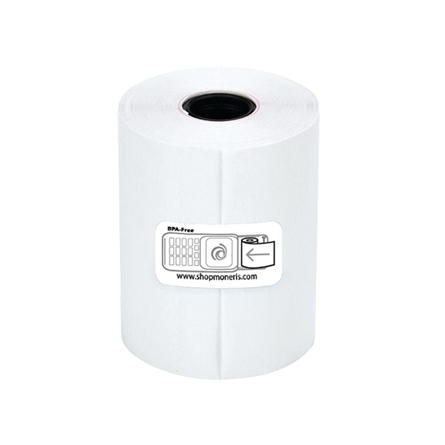

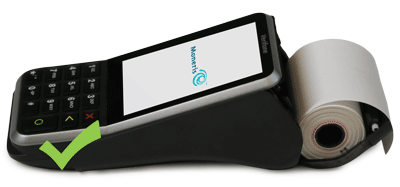

2. Insert and unroll the paper
The loose end should unroll toward the back of the terminal. If it does not, printouts may be blank. Extend the paper at least one inch (2.5 cm) over the top of the lid.

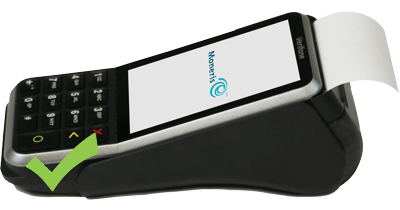

3. Close lid and press down
This will snap the lid in place so the extended paper is secure. The paper should unroll over top of lid, not over the screen.
Press and hold the green circle key until the screen illuminates. If the terminal does not respond, go to the next step to charge the battery.
Charge the terminal’s battery for four hours, or until the charge level is 100%.

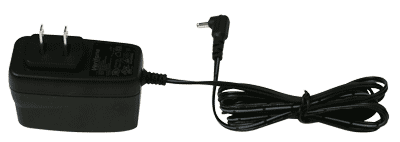

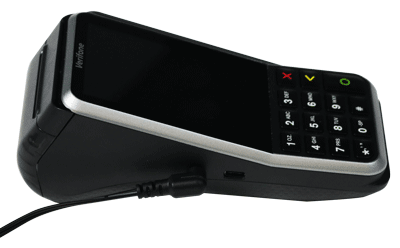

1. Connect charge cable to power port
Locate the charge cable and insert the charge cable connector into the circular power port on the left side of the terminal. (If you have the optional charge base, use that instead.)

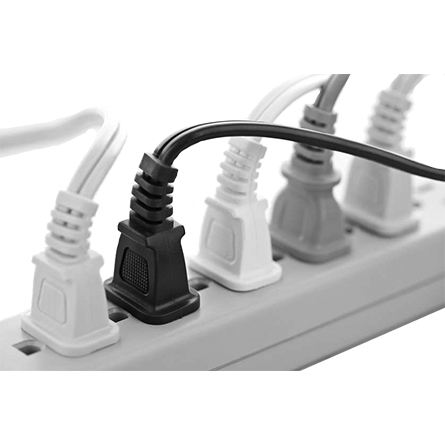

2. Connect charge cable to power source
Plug the other end of the cable into a working power outlet. The terminal will power on if the battery has sufficient charge.
TIP: Plug the power cable into a power source last to avoid surges. Use a power bar with surge protection. To avoid damage, use the exact power adaptor and cables provided by Moneris for your terminal. If you have a power cable from another terminal, do not use it as it may damage your new terminal.
Let’s connect and tailor your terminal to fit your business
