Installing the Power Cable




To power up the base, simply connect the base to a power outlet as outlined below.

IMPORTANT: You must use the exact power adaptor and cable provided with the terminal and base, and use only batteries provided by Moneris Solutions. Failure to do so may affect the operability of, or cause damage to the terminal and/or base and Moneris Solutions shall have no liability whatsoever for a failure to follow these instructions.

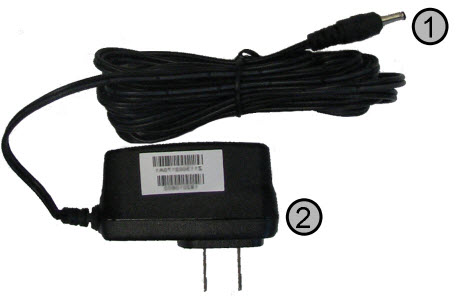

1.   Insert the small connector end (1) of the power cable into the small circular port on the base.

2. Insert the plug (2) into a power outlet.
The base powers on.

If this is the first time you have powered on the base, go to Setting up the Hardware.

To power off the base, simply remove the plug from the power outlet.

To reset the base, power off the base, then wait 30 seconds, and then power on the base.
