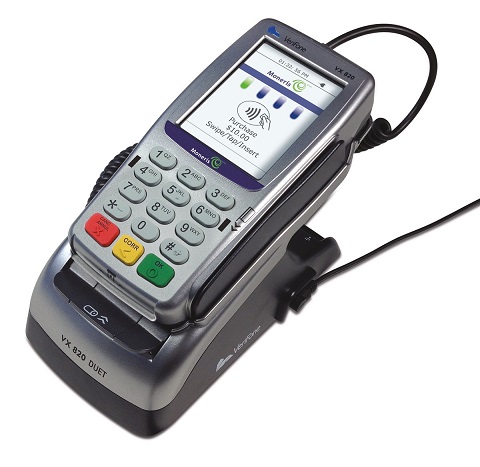

The terminal consists of:
· a hand-held terminal with:
♦ an integrated PINpad
♦ a backlit display
♦ keypad
♦ a chip card reader
♦ embedded contactless card reader
· communications base with:
♦ an integrated printer
♦ ports for communications and peripherals
♦ a power port
· an optional external PINpad

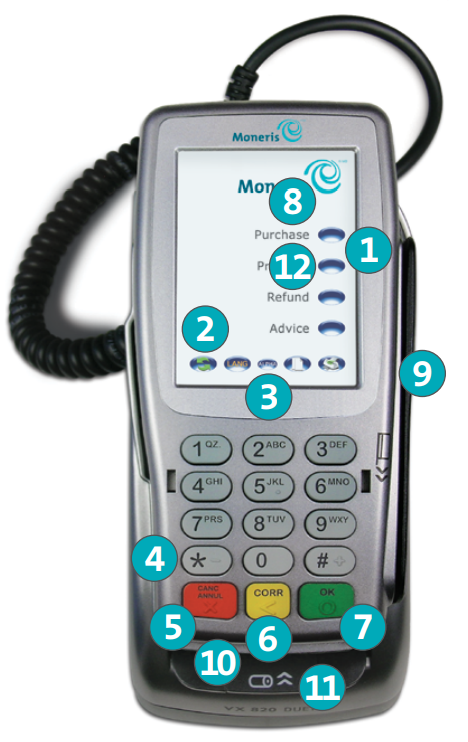

Vertical blue function icons● icons: Multi-function icons that correspond to the options displayed on the right-hand side of the touchscreen. |
|
Horizontal blue function icons● (Arrow) icon: Scrolls up or down. Press the yellow CORR key to toggle between scrolling up and down. ● (LANG) icon: Accesses the Set Language menu. ● (Reprint) icon: Displays the REPRINT menu. ● (Reports) icon: Displays the REPORTS menu. |
|
(ALPHA) icon● To key in alphabetic characters, press the numeric key on the keypad labelled with the desired character, then press the ALPHA icon on the touchscreen until that character is displayed. |
|
Asterisk (*) key● Returns to the applications menu. |
|
CANC ANNUL (red key)● Cancels the current operation. |
|
CORR (yellow key)● Clears displayed data one character at a time. ● Changes the scrolling direction of the (Arrow) icon. |
|
OK (green key)● Accepts displayed data. ● Submits keyed in data. ● Displays the CONFIGURATION menu when pressed at the transactions menu. |
|
Embedded contactless reader |
|
Magnetic stripe reader |
|
Chip reader |
|
Printer |
|
Touchscreen |
