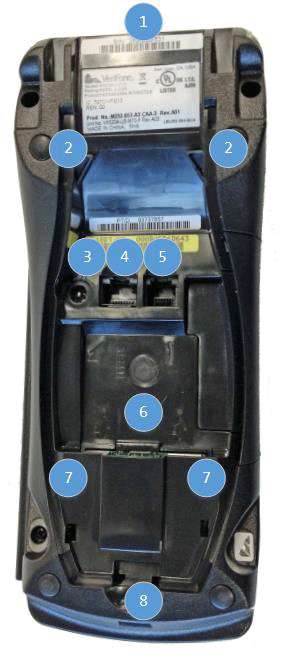

The underside of the VX 520 terminal features a well that contains connection ports.
| Number | Description |
1 |
Top of terminal |
2 |
Clips (to hold the Wings on the Splitter in place). |
3 |
Power port (marked with the |
4 |
RS232 port (for use with the VX 820 external PINpad) |
5 |
Dial port (marked with the |
6 |
ETH port |
7 |
USB ports (not used) |
8 |
Bottom of terminal |

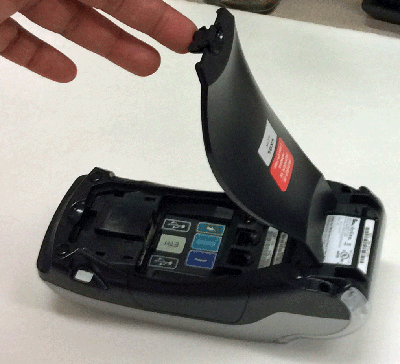

To access the connection well:
1. Turn the terminal over so that the underside is exposed.
2. Remove the cover on the connection well.
a. Lift the latch at the bottom of the terminal.
b. Flip the lid up towards the top of the terminal.
symbol)
symbol)
