The Ports on the Vx810 Duet Communication Base

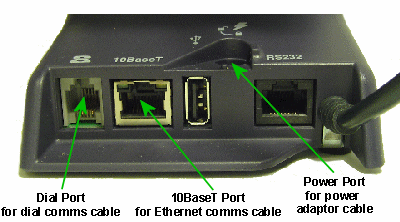

The Duet communications base has 5 (five) ports:
Icon |
Description |
|
Use for the dial communications cable. |
10BaseT |
Use for the Ethernet communications cable. |
|
DO NOT USE |
|
Use for the power adaptor cable. |
RS232 |
Use for the external PINpad. |
