The Integrated Printer

A thermal printer is integrated into the iWL255 terminal. It prints black text on white, one-part thermal paper.

To order additional paper rolls...

Note:When stored, thermal paper should not be exposed to:
- Vinyl, plastics, adhesives, shrink-wraps, wet-toner copies or certain carbon papers
- Office light, UV light
- High humidity (above 65% relative humidity)
- Temperatures above 25 degrees Celsius (77 degrees Fahrenheit)

To load a new paper roll into the terminal:

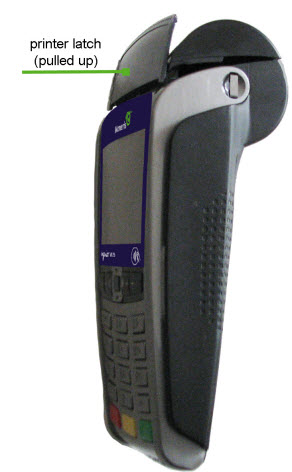

1.  Pull the printer latch up and then pull it back to open the lid.

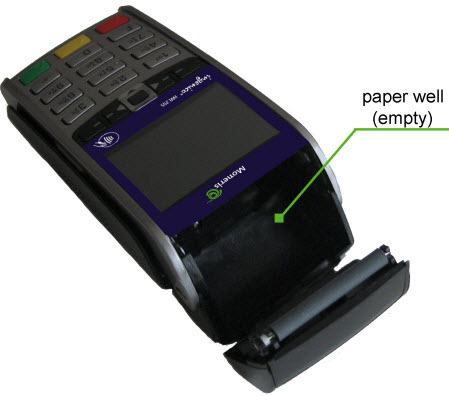

2.  Remove the empty paper roll (if present) from the paper well.

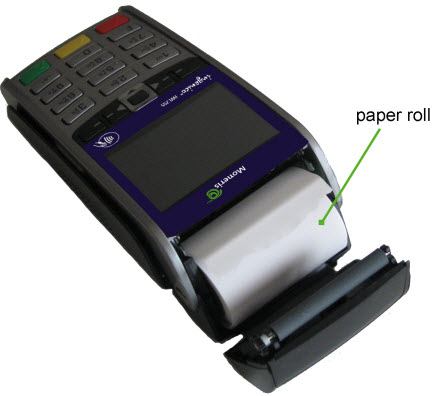

3.  Place the new paper roll into the paper well with the loose end of the roll extended towards the front of the terminal.


4.  Unroll enough paper to extend at least one inch (2.5 cm) past the purple faceplate.

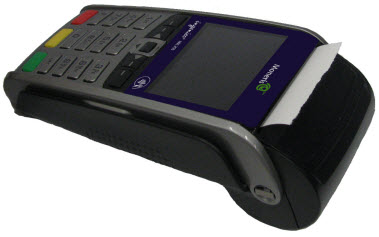

5.  Close the printer lid and press firmly on it until it snaps back into place and the extended paper securely pressed between the lid and the faceplate.

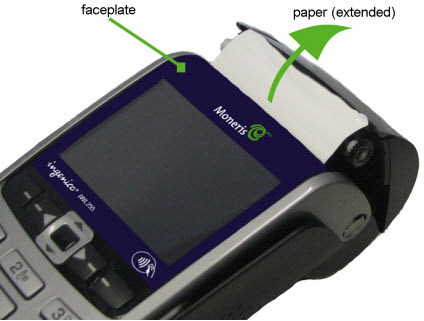

6.  Tear off the loose end of the paper by pulling it towards the keypad.

The printer is ready to print.

Note:  Once the paper roll has been installed, do not try to advance the paper by pulling it. To advance the paper (the terminal must be powered on), press and hold down the key_correct-r.jpg key.  If the printer ran out of paper in the middle of a receipt or report, you can reprint the receipt or report.
