Information Header

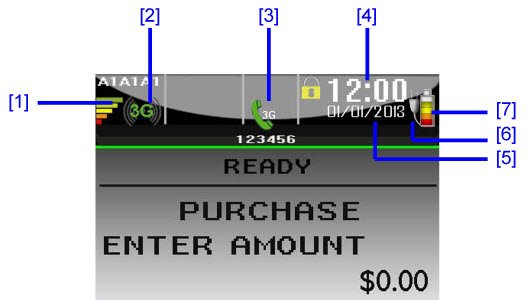

The "information header" is the upper portion of the terminal screen that displays communications and power indicators (as pictured here).  Listed below are the important status indicators:



3G Communications Status

[1] Wireless Signal Strength (3G)

[2] 3G Communications Configured and SIM card installed.

[3] 3G Connection Status



[4] Time (hh/mm)

[5] Date (dd/mm/yy)



[6] Terminal Connected to External Power Source (refers to the "plug" portion of the battery icon)

[7] Battery Charge Level (refers to coloured bars in the battery icon)
