Dial Communication Cable


When connected to a telephone wall jack and the phone port on the communications base, this cable allows the base to use dial communication.

To connect the dial cable:

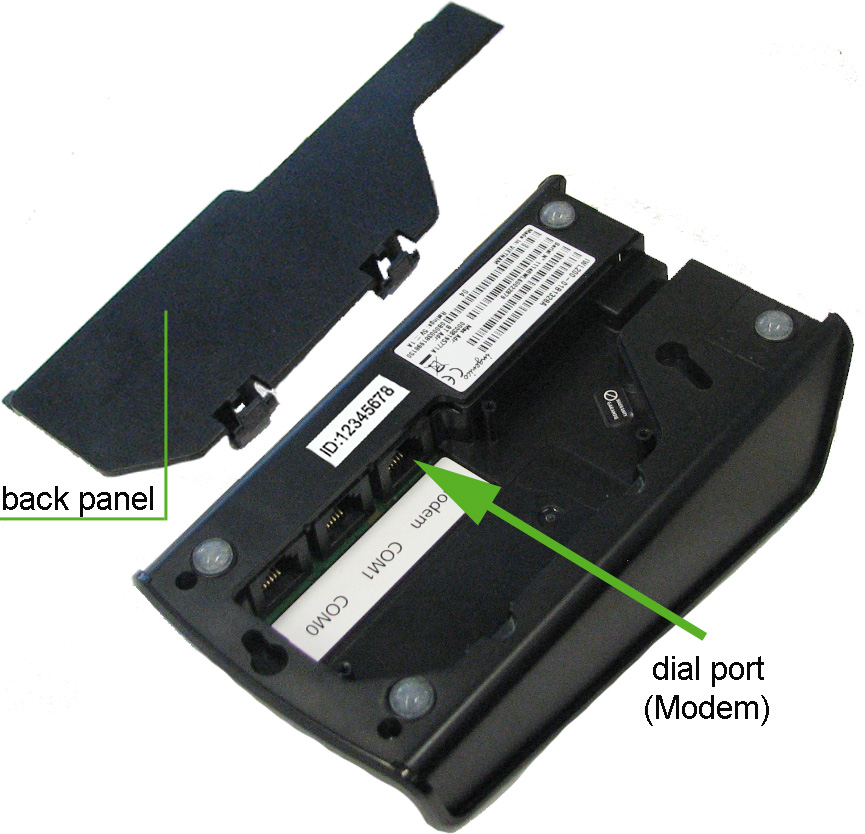

1. Insert one end of the cable into the port inside the base.


2. Insert the other end into a telephone wall jack.

You must configure the appropriate dial communication parameters (e.g., the prefix if required to dial out at your location) before attempting to use the hardware to communicate with the Moneris Host
