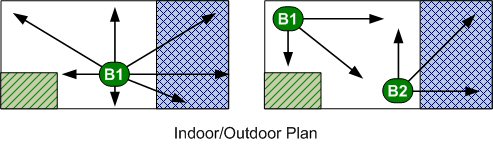

Indoor/Outdoor Floor plan

If your location has an outdoor area where you wish to use the iWL220 (e.g. a patio), try the base locations indicated below to see which provides the best coverage.
