The terminal consists of:
· a hand-held terminal with:
o an integrated PINpad
o a backlit display
o keypad
o a chip card reader
o embedded contactless card reader
o an integrated printer
o communication and power ports on the underside of the terminal

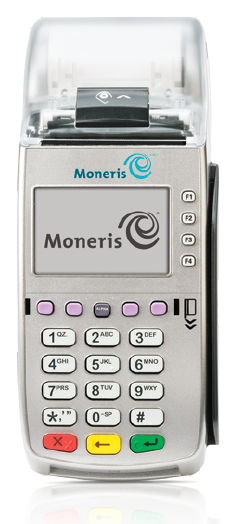

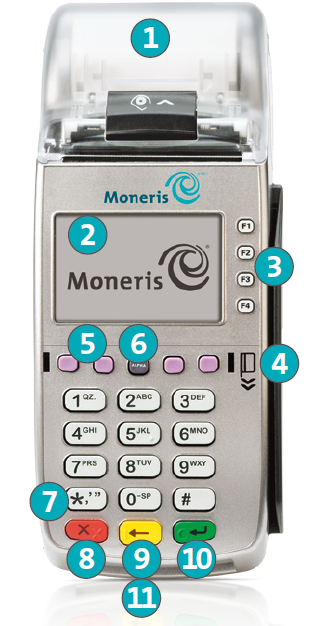

Integrated printer |
|
Embedded contactless reader |
|
F1 to F4 keys● Multi-function icons that correspond to the options displayed on the right-hand side of the touchscreen. |
|
Magnetic stripe reader |
|
Purple keys● Arrow key: First purple key on the left, located under the or icon. Scrolls up or down. Press the yellow key to toggle between scrolling up and down. ● LANG key: The second purple key on the left. Accesses the Set Language menu. ● Reprint key: The second purple key from the right. Displays the REPRINT menu. ● Reports key: The first purple key on the right. Displays the REPORTS menu. |
|
ALPHA key● To key in alphabetic characters, press the numeric key on the keypad labelled with the desired character, then press the ALPHA key until that character is displayed. |
|
Asterisk (*) key● Returns to the applications menu. |
|
Red key● Cancels the current operation. |
|
Yellow key● Clears displayed data one character at a time. ● Changes the direction of the arrow icon above the first purple key on the left. |
|
Green key● Accepts displayed data. ● Submits keyed in data. ● Displays the CONFIGURATION menu when pressed at the transactions menu. |
|
Chip card reader |
