Powering Up the VX 520

The Moneris VX 520  terminal does not have an ON/OFF switch.

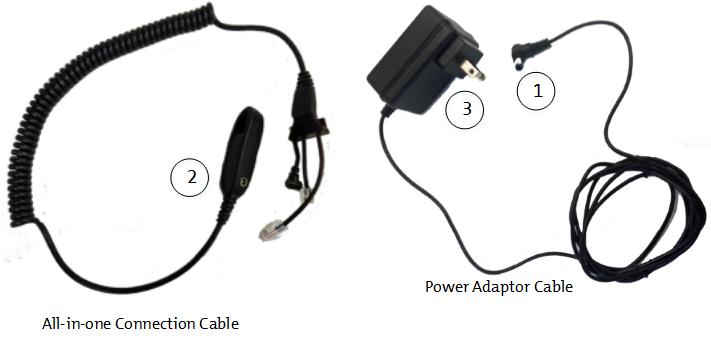

The  VX 520 All-in-one Connection and Power Cables

IMPORTANT: You must use the exact power adaptor and cable provided with the terminal  by Moneris. Failure to do so may affect the operability of, or cause damage to, the terminal.



To power up (or turn on) the terminal:

  1. Plug the power cable's barrel connector (1) into the power port (2) labelled with the symbol located on the Magic Box of the all-in-one connection cable.

  2. Plug the other end of the power cable (3) into a power source e.g. a wall jack or a power bar.



The terminal is ready when the applications menu appears.

To power down (or turn off) the terminal...
